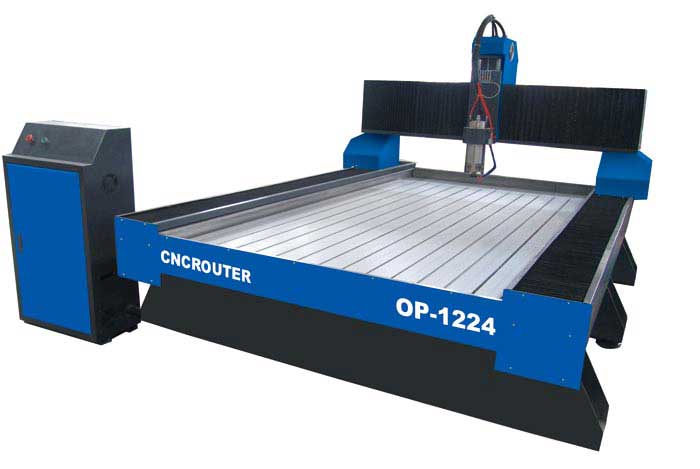

OPTIMA 9015/OPTIMA 1224 |
|
|
■the whole lathe bed is welded with thick tube frame, with high-temperature artificial aging treatment can ensure strong, durable work without any deformation.
■Y axis adopts two- motor drive, select matching in Marble Engraving Machine CNC Router to ensure smooth movement.
■High accurate rack and pinion drive to ensure high precision, high speed, great strength
■With Taiwan made Hiwin linear square guide rails, Marble Engraving Machine CNC Router have high precision, high redundancy bearing and long life.
■All excellent mechanical and electrical design, selection of a variety of electrical accessories, to minimize the failure rate
■Equipped with a sink and automatic water cooling system in Marble Engraving Machine CNC Router
■Dust and water proof design, full protect machinery transmission parts
■Applicants: Nature marble, granite, artificial stone, tombstone, milestones, ceramic tile, glass and other materials, and line three-dimensional relief carving, cutting, back side, drill two-dimensional sculpture. |
|
|
Model
Date |
OPTIMA 9015 |
OPTIMA 1224 |
|
(XxYxZ)Processing range |
900x1500x300mm |
1200x2400x300mm |
|
Max engraving depth |
150mm |
150mm |
|
Max engraving speed |
3000mm/min |
3000mm/min |
|
Resolution rate |
<0.05/300mm |
<0.05/300mm |
|
Carving command G code |
Gcode |
G代码 |
|
Spindle power |
3.0kwwater cooling |
3.0kw water cooling |
|
Cutter shank diameter |
Φ3.175Φ6Φ12.7 |
Φ3.175Φ6Φ12.7 |
|
XYZ导轨XYZ axis guide |
Square linear guide |
Square linear guide |
|
Transmission |
XY高精级齿轮齿条/Z轴滚珠丝杆传动
high precision rack and gear
Transmission／Z-axis ball screw guide drive |
XY高精级齿轮齿条/Z轴滚珠丝杆传动
high precision rack and gear
Transmission／Z-axis ball screw guide drive | |
|
|
|
|
| |
|
|
|
